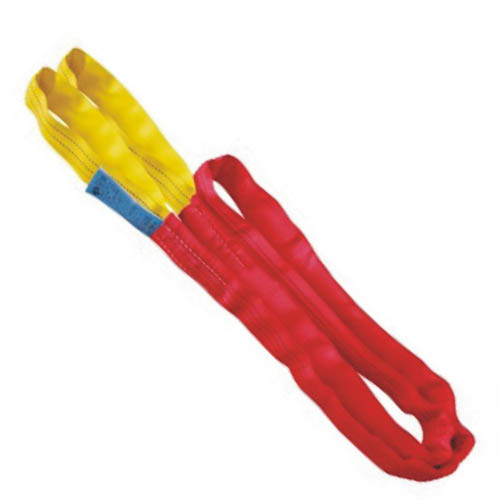

DÂY CẨU HÀNG TRÒN

Especially suitable for loading round objects.
The surface of round sling is smooth, does not cause damages to tender objects loaded.
Various loading methods, including dragging or pulling loaded objects.
Various loading methods and load is bear evenly, enable the sling’s usage life last longer.
High strength/weight ratio.
Anti-abrasion and anti-incision protection sleeve can be attached.
Has special label, working load is differentiated by colors according to international standard.
Easy to identify even if the sling has been abraded.
Light and soft, can be used in small narrow space.
Non-electric conductive, no danger of electric stroke.
In compliance with European Standard EN1492-2:2000 and Chinese Standard JB/T8521-2007.

Max SWL =Mode Coefficient p × Working load limit　　　　　　　　　　Max SWL of lifting method
Code	Color	Single Max working load limited						2-Legs Max. Working load limited				Approx Width (mm)	Min Length (m)	Max Length (m)
		Upright	Choked	β				Upright	Choked	Upright	Choked
		Upright	Choked	0°-7°	7°-45°	45°-60°	45°	Upright	Choked	Upright	Choked

		1.0	0.8	2.0	1.4	1.0	0.7	1.4	1.12	1.0	0.8
EA-A01	purple	1000	800	2000	1400	1000	700	1400	1120	1000	800	40	1	100
EA-A02	green	2000	1600	4000	2800	2000	1400	2800	2240	2000	1600	50	1	100
EA-A03	yelllow	3000	2400	6000	4200	3000	2100	4200	3360	3000	2400	60	1	100
EA-A04	gray	4000	3200	8000	5600	4000	2800	5600	4480	4000	3200	70	1	100
EA-A05	red	5000	4000	10000	7000	5000	3500	7000	5600	5000	4000	75	1	100
EA-A06	coffe	6000	4800	12000	8400	6000	4200	8400	6720	6000	4800	80	1	100
EA-A08	blue	8000	6400	16000	11200	8000	5600	11200	8960	8000	6400	90	1	100
EA-A10	orange	10000	8000	20000	14000	10000	7000	14000	11200	10000	8000	100	1	100
EA-A12	pink	12000	9600	24000	16800	12000	8400	16800	13440	12000	9600	110	1	100
EA-A15	orange	15000	12000	40000	28000	15000	14000	28000	22400	15000	12000	125	1	100
EA-A20	orange	20000	16000	60000	42000	20000	21000	42000	33600	20000	16000	150	1	100
EA-A25	orange	25000	20000	50000	35000	25000	17500	35000	28000	25000	20000	180	1	100
EA-A30	orange	30000	24000	60000	42000	30000	21000	42000	33600	30000	24000	200	1	100
EA-A40	orange	40000	32000	80000	56000	40000	28000	56000	44800	40000	32000	200	1	100
EA-A50	orange	50000	40000	100000	70000	50000	35000	70000	56000	50000	40000	220	1	100
EA-A60	orange	60000	48000	12000	84000	60000	42000	84000	67200	60000	48000	220	1	100
EA-A80	orange	80000	64000	16000	112000	80000	56000	112000	89600	80000	64000	260	1	100
EA-A100	orange	100000	80000	20000	140000	100000	70000	140000	112000	100000	80000	290	1	100
